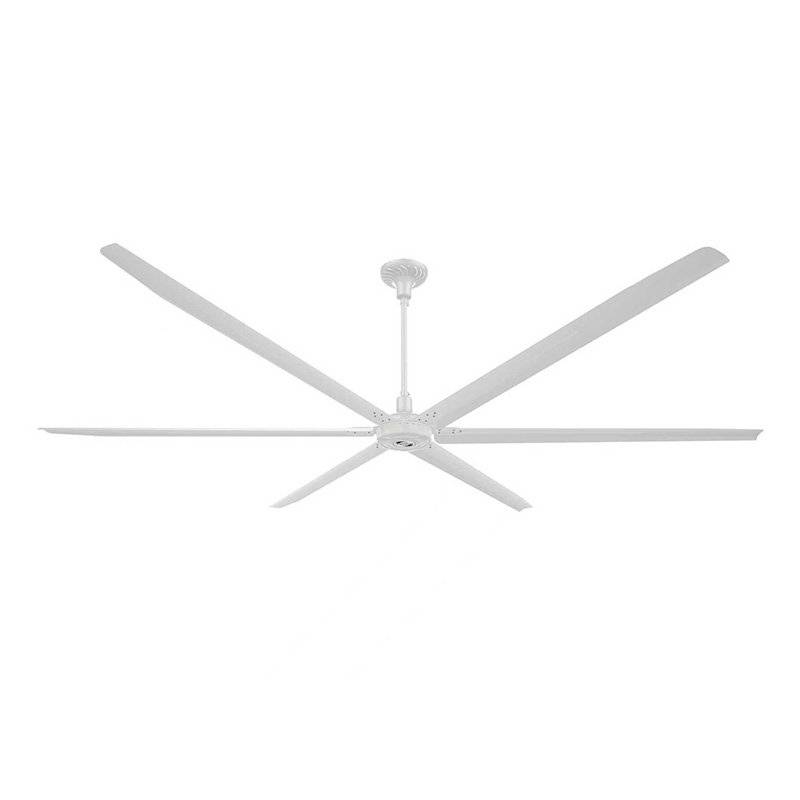

Commercial permanent magnet ceiling fan motor adopts outer rotor structure, direct drive linkage and drive impeller rotation principle.
Permanent magnet motor is built-in high insulation enamel coil, super magnetic steel body, high temperature resistance bearing, upper and lower end caps.
A high-efficiency ventilation solution designed for medium and low-rise factories and supermarkets, ensuring optimal air circulation in large areas.
Equipped with variable frequency speedcontrol and larger, longer fan blades, generating stronger wind with a widercoverage area.
Superior wind volume quickly improves air circulation, regulates indoor temperature, and enhances environmental comfort for diverse scenarios.
Commercial and industrial fans are highly efficient and energy-saving air circulation devices specially designed for large-area spaces Adopting variable frequency technology, they allow flexible adjustment of wind speed, and with larger-sized fan blades, they can generate stronger airflow with a wider coverage.
Compared with traditional fans, they not only have more outstanding ventilation and cooling capabilities, but can also quickly improve the air circulation in large-area areas such as supermarkets and shopping malls, effectively regulate indoor temperature, enhance environmental comfort, and adapt to the needs of different application scenarios.
Pure Copper Motor
Ensures high efficiency anddurability for long-termreliable performance.
Precision Bearings
Guarantees smooth andquiet operation, minimizingnoise and vibration.
Reinforced Fan Blades
Imported silicon steelstator provides powerfuland stable air output.
Stable Operation
Ensures a firmer structureand more stable operationeven at high speeds.
Extended Fan Blades
Covers a wider area forbetter air circulation andcooling effect.
Reinforced Suspension
Robust suspension rodensures stable operationwithout shaking.
| Model | ADS-35 | ADS-33 | ADS-30 | ADS-27 | ADS-24 | ADS-21 |
| Feet(Ft) | 3500 | 3300 | 3000 | 2700 | 2400 | 2100 |
| Power (W) | 240 | 230 | 230 | 200 | 190 | 180 |
| Speed (rpm) | 88 | 95 | 102 | 108 | 112 | 130 |
| Airflow (m3/min) | 4900 | 4600 | 4300 | 4000 | 3800 | 3600 |
| Weight (kg) | 32 | 31 | 30 | 27 | 26 | 24 |
| Voltage (V) | 220V 50Hz | |||||
Minimum 3.5 to 6 meters. Longer downrods available for higher ceilings.
Minimum 0.5 meters clearance from fan blade to the beam.
Minimum 0.2 meters from fan blade to walls or other obstacles.
Input: 220V 50Hz. Remote control operation for easy adjustment.
